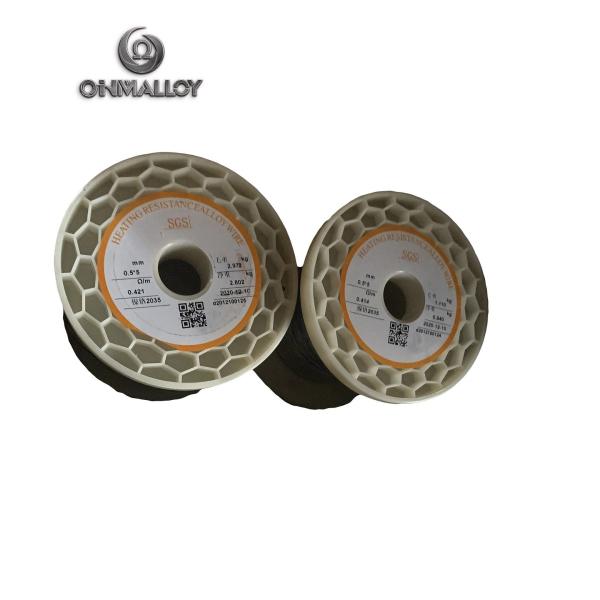

Ribbon 0.5mmx5mm Ni35Cr20 Flat Wire Nichrome Alloy

Name: Ribbon 05mmx5mm Ni35Cr20 Flat Wire Nichrome Alloy
Brand: Ohmalloy
Price: 21 USD

Ribbon 0.5mmx5mm Ni35Cr20 Flat Wire Nichrome Alloy Manufactures

Brand Name : Ohmalloy

Model Number : 104A

Certification : ISO CE

Place of Origin : China

MOQ : 10KG

Price : USD21/kg~USD27/kg

Payment Terms : L/C, T/T,

Supply Ability : 8000 kgs per week

Delivery Time : within 15 days after payment

Packaging Details : spool or be customized by the clients' demand.

Chemical Composition : 35%Ni 20%Cr balance iron

Size : 0.5mm*5mm

Shape : ribbon

Application : sealer heating ribbon

resistivity(μΩ.m) : 1.04

Tensile Strength (≥ MPa) : 675

Elongation (≥ %) : 20

yield strength (≥ MPa) : 340

density (g/cm3) : 7.9

working temperature(℃) : 1100

OEM : available

annealing treatment : hydrogen annealing

surface treatment : bright and soft

certificate : SGS, ISO

Contact Now

0.5*5mm Chromel D ribbon Ni35Cr20 flat wire Economic Air Stable Resistance Alloy for sealer

(Common Name: Ni35Cr20,Chromel D, Nikrothal 40, N4, HAI-NiCr 40, Tophet D, Resistohm 40, Cronifer Ⅲ,Chromex,35-20 Ni-Cr,Alloy D,NiCr-DAlloy 600,Nikrothal 4,MWS-610,Stablohm 610.)

OhmAlloy104A is a nickel-chromium alloy (NiCr alloy) characterized by High resistivity, good oxidation resistance,very good form stability,good ductility and excellent weldability. It is suitable for use at temperatures up to 1100°C.

Typical applications for OhmAlloy104A are used in night-storage heaters,convection heaters,heavy duty rheostats and fan heaters.And also used for heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads,car seats,baseboard heaters and floor heaters,resistors.

Normal composition%

C	P	S	Mn	Si	Cr	Ni	Al	Fe	Other
Max
0.08	0.02	0.015	1.00	1.0~3.0	18.0~21.0	34.0~37.0	-	Bal.	-

Typical Mechanical properties(1.0mm)

Yield strength	Tensile Strength	Elongation
Mpa	Mpa	%
340	675	35

Typical Physical properties

Density (g/cm3)	7.9
Electrical resistivity at 20℃(Ωmm2/m)	1.04
Conductivity coefficient at 20℃ (WmK)	13

Coefficient of thermal expansion
Temperature	Coefficient of Thermal Expansion x10-6/℃
20 ℃- 1000℃	19

Specific heat capacity
Temperature	20℃
J/gK	0.50

Melting point (℃)	1390
Max continuous operating temperature in air (℃)	1100
Magnetic properties	non-magnetic

Temperature Factors Of Electrical Resistivity

20℃	100℃	200℃	300℃	400℃	500℃	600℃
1	1.029	1.061	1.09	1.115	1.139	1.157
700℃	800℃	900℃	1000℃	1100℃	1200℃	1300℃
1.173	1.188	1.208	1.219	1.228	-	-

Style of supply

Alloys Name	Type	Dimension
OhmAlloy104AW	Wire	D=0.03mm~8mm
OhmAlloy104AR	Ribbon	W=0.4~40	T=0.03~2.9mm
OhmAlloy104AS	Strip	W=8~250mm	T=0.1~3.0
OhmAlloy104AF	Foil	W=6~120mm	T=0.003~0.1
OhmAlloy104AB	Bar	Dia=8~100mm	L=50~1000
