Type C Thermocouple Bare Wire WRe3 WRe25 High Temperature Excellent Accuracy 0.08mm

Name: Type C Thermocouple Bare Wire WRe3 WRe25 High Temperature Excellent Accuracy 008mm
Brand: OHMALLOY/OEM
Price: 1 USD

Type C Thermocouple Bare Wire WRe3 WRe25 High Temperature Excellent Accuracy 0.08mm Manufactures

Brand Name : OHMALLOY/OEM

Model Number : SP-WRe3 WRe25

Certification : ISO9001：2015

Place of Origin : China

MOQ : 10 Meter

Payment Terms : L/C, T/T, ,Paypal

Supply Ability : 80000 meter per month

Delivery Time : 3-18 working days after payment confirmed

Packaging Details : Spool+paper carton

Name : Type C Thermocouple Bare Wire WRe3 WRe25 High Temperature Excellent Accuracy 0.08mm

Wire Type : Thermocouple Bare Wire

Material : WRe3(Tungsten97Rhenium3) WRe25(Tungsten75Rhenium25)

Wire Diameter : 0.08mm

Wire State : Bright, Annealed

Package : Spool

Application : Type C Thermocouple

Contact Now

Type C Thermocouple Bare Wire WRe3 WRe25 High Temperature Excellent Accuracy 0.08mm

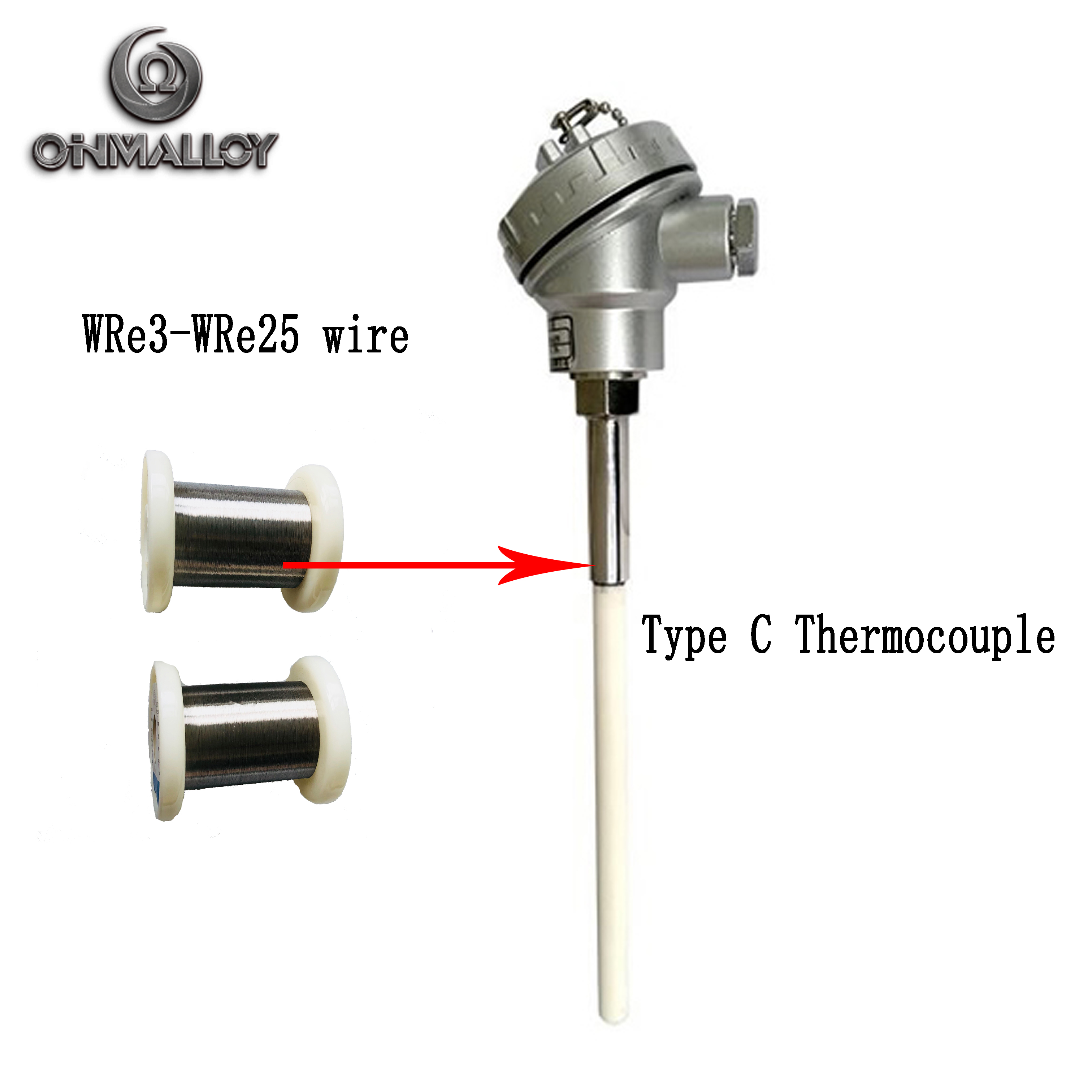

Type C thermocouple wire – Tungsten Rhenium wire

Type: WRe3/25, WRe5/26

Application: Tungsten Rhenium alloy have good electrical properties, ductility and easy to be processed. It can be used as thermocouple for high temperature furnace

Temperature range: 0-2300℃, it can be used in vacuum, hydrogen and inert atmosphere.

Grade	Chemical composition %
Grade	W	Re
WRe3	97	3
WRe25	75	25

Type C Thermocouple Bare Wire WRe3 WRe25 High Temperature Excellent Accuracy 0.08mm

The tolerance for the wire specially used in measuring molten steel

Grade	WRe3-WRe25
Diameter(mm)	0.08	0.1	0.5
Tolerance(mm)	±0.01	±0.02	±0.02

Temperature measuring tolerance

Thermocouple type	Temperature range(℃)	Tolerance
WRe3/25	0~400	4.0℃
WRe3/25	400~2300	±0.25%

Density and resistivity at 20℃

Type	WRe3	WRe25	WRe5	WRe26
Density(g/cm³)	19.16	19.58	19.2	19.6
Resistivity(μΩcm)	0.0929	0.2667	0.1206	0.3012
