16mm Type K Thermocouple High Temp Alloys With Ceramic Tube

Brand Name : OHMALLOY

Model Number : Type B/S/K

Certification : ISO ROHS

Place of Origin : China(Shanghai)

MOQ : 50kg

Price : negotiable

Payment Terms : , L/C, T/T

Supply Ability : 20000T/Year

Delivery Time : 7-20days after your deposit received

Packaging Details : IN Wooden box

Name : Thermocouple ceramic tube

Shape : Tube

Grade : type B,type S,type K

Measuring range : 0~1800C

Thermowell diameter : 16mm, 20mm, 25mm

Customized support : OEM, ODM, OBM

Contact Now

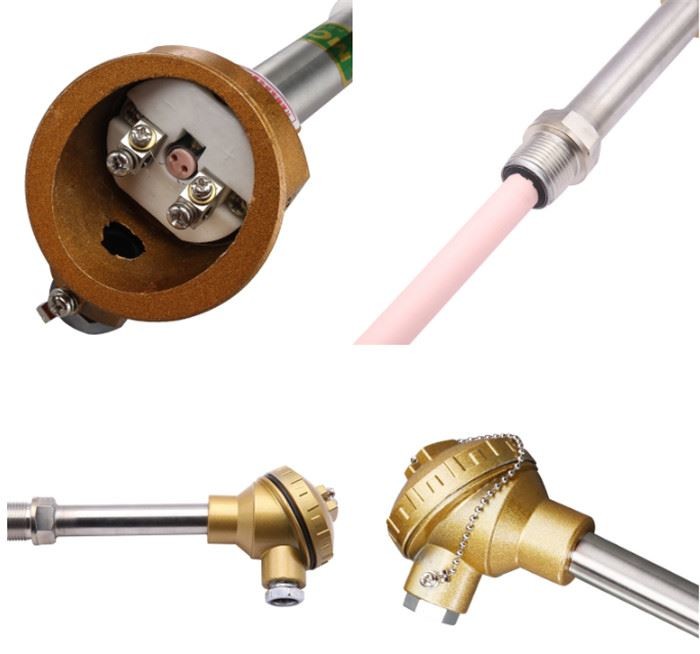

Type B/S/K thermocouple with ceramic tube

Calibration grade

Tolerance: ClassⅠ, Class Ⅱ

Electrical interface:

M20×1.5,M22×1.5,1/2NPT (M30×1.5 and M36×2)

Connector screw

Screw size:M12×1.5,M16×1.5,M27×2,G1/2,G3/4,1/2NPT

(Ceramic protection tube) Thermcouple

Thermocouple grade Model Grade Temperature range ℃ Spec Thermal response time
τ 0.5(s)
OD mm Protection tube material
Simplex type B WRR-130 B 0~1800 φ16 Alundum tube <150
Simplex type B WRR-131 B 0~1800 φ25 Alundum tube <360
Duplex type B WRR2-130 B 0~1800 φ16 Alundum tube <150
Duplex type B WRR2-131 B 0~1800 φ25 Alundum tube <360
Simplex type S WRP-130 S 0~1600 φ16 Ceramic <150
Simplex type S WRP-131 S 0~1600 φ25 Ceramic <360
Duplex type S WRP2-130 S 0~1600 φ16 Ceramic <150
Duplex type S WRP2-131 S 0~1600 φ25 Ceramic <360
Simplex type K WRN-133 K 0~1100 φ20 Ceramic <240
Duplex type K WRN2-133 K 0~1100 φ20 Ceramic <240
Simplex type K WRN-132 K 0~1100 φ16 Ceramic <240


Remarks:
1) Non-insertion tube material: SS304 or SS316 or SS310

2) Dia φ25mm tube is double-layer ceramic

3) We also can make the special tube as per customer’s design
